Round Tube Livestock Farm Yard Fence Panels Hot-dipped Galvanized Carbon Steel
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام محصول | پنل حصار گاو | محل منبع | هبی ، چین |
|---|---|---|---|
| استفاده | حصار گاو | مادی | لوله فولادی |
| درمان سطحی | گالوانیزه | بسته بندی | پالت فلزی |
| درگاه بارگیری | بندر تیانجین | موق | 50 عدد |
| Supply Ability | 100 sets per day | Size | 1.8*2.1m |
| لوله گرد | 32*1.6 میلی متر | لوله بیضی | 30*60*1.6mm |
| برجسته کردن | galvanized steel cattle fence panel,round tube livestock fence,farm yard fence panels,round tube livestock fence,farm yard fence panels |
||
توضیحات محصول
Round Tube Livestock Farm Yard Fence Panels Hot-dipped Galvanized Carbon Steel
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Cattle fence panel |
| Place of Origin | Hebei, China |
| Usage | Cattle fence |
| Material | Steel tube |
| Surface Treatment | Galvanized |
| Packing | Metal Pallet |
| Loading Port | Tianjin Port |
| M.O.Q. | 50pcs |
| Supply Ability | 100 sets per day |
| Size | 1.8*2.1m |
| Round Tube | 32*1.6mm |
| Oval Tube | 30*60*1.6mm |
Product Description
The Cattle Panel has been widely used in horticultural structures, small farm partitions, and enclosures due to its economy and practicality. Its affordable price makes it an excellent choice for budget-conscious projects.
Key Specifications
- Surface treatment: Hot dipped/Electro galvanized, Electrostatic spraying
- Material: Three types available - round pipe, square pipe, oval pipe
- Advantages: Excellent oxidation resistance, strong, durable and flexible construction
- Process options: Galvanizing before welding or made of galvanized steel tube then welded
Round Tube Style Specifications
| Material | Hot dipped galvanized steel pipe |
|---|---|
| Finishing (zinc coating) | More than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| Horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
Square Tube Style Specifications
| Material | Hot dipped galvanized steel pipe |
|---|---|
| Finishing (zinc coating) | More than 15 microns |
| Height × Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
Oval Tube Style Specifications
| Material | Hot dipped galvanized steel pipe |
|---|---|
| Finishing (zinc coating) | More than 15 microns |
| Height × Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
Key Benefits
- Portable: Easy to handle and install, making the fence very flexible
- Robust: Interlocking system creates stable quality with fully welded construction
- Environmentally friendly: No need to dig holes or lay foundation, protecting grassland
- Livestock protection: No sharp edges, all welding spots are smoothly finished
- Cost-effective: Provides years of service with minimal maintenance at low initial cost

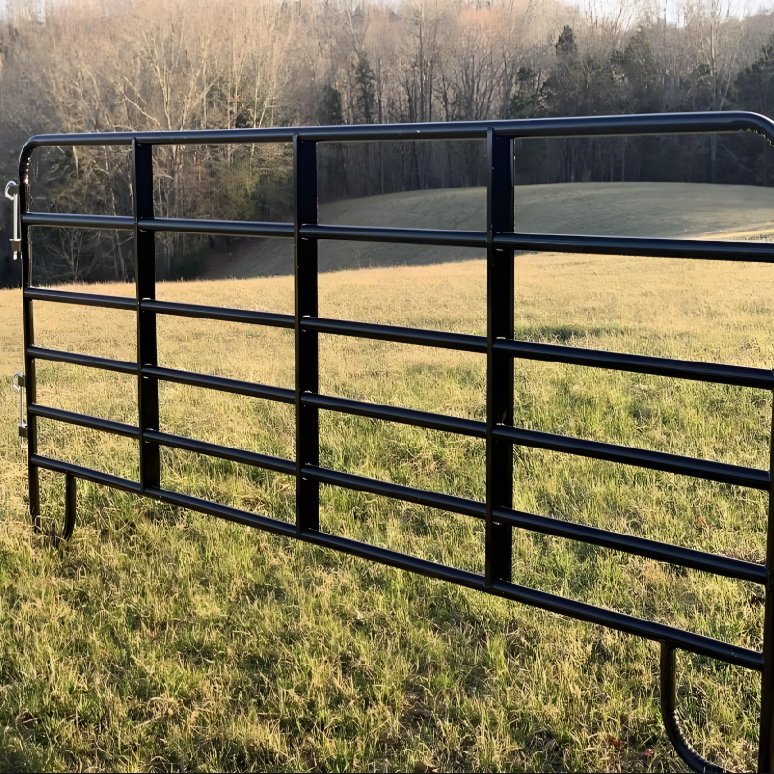

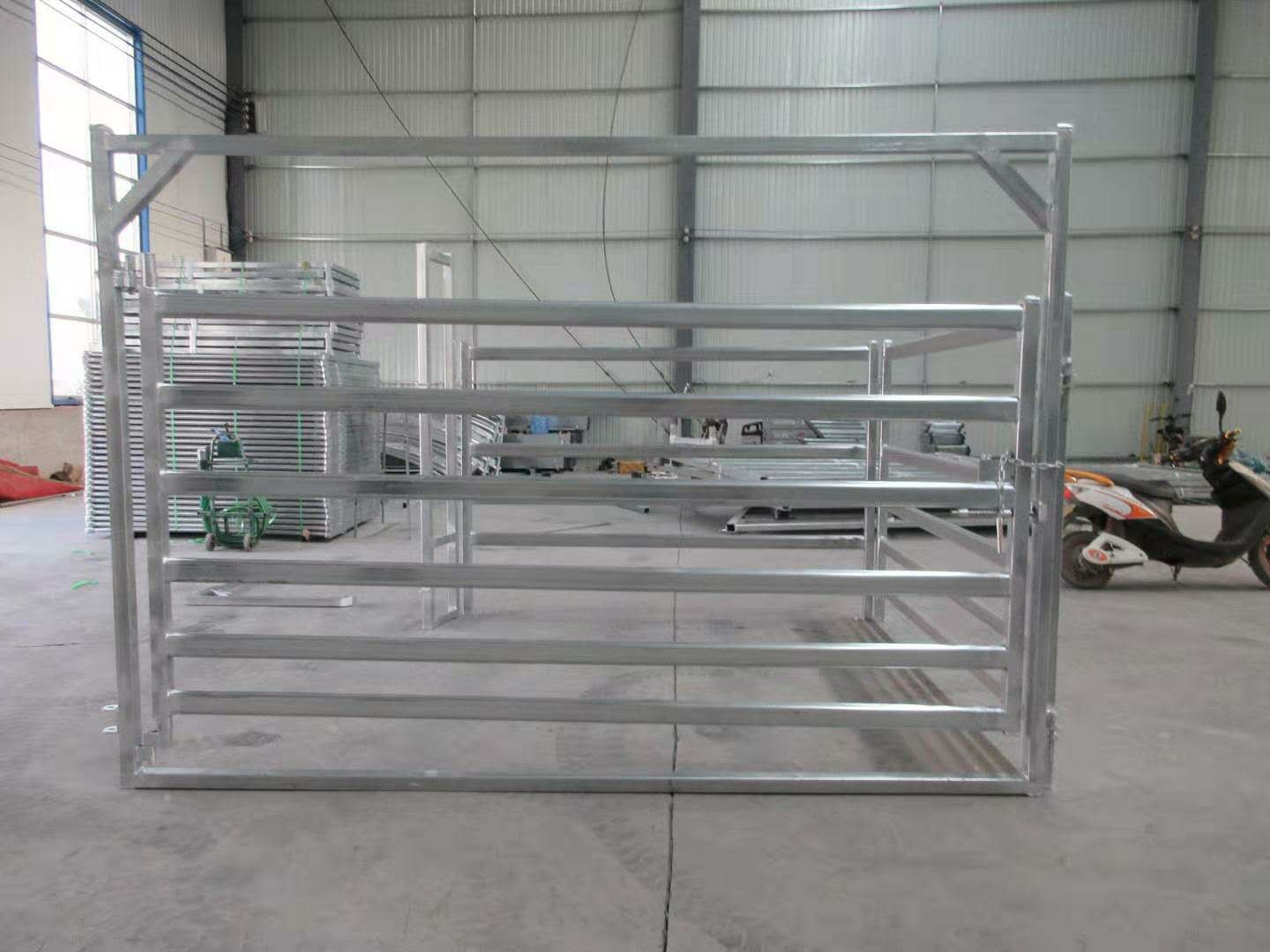

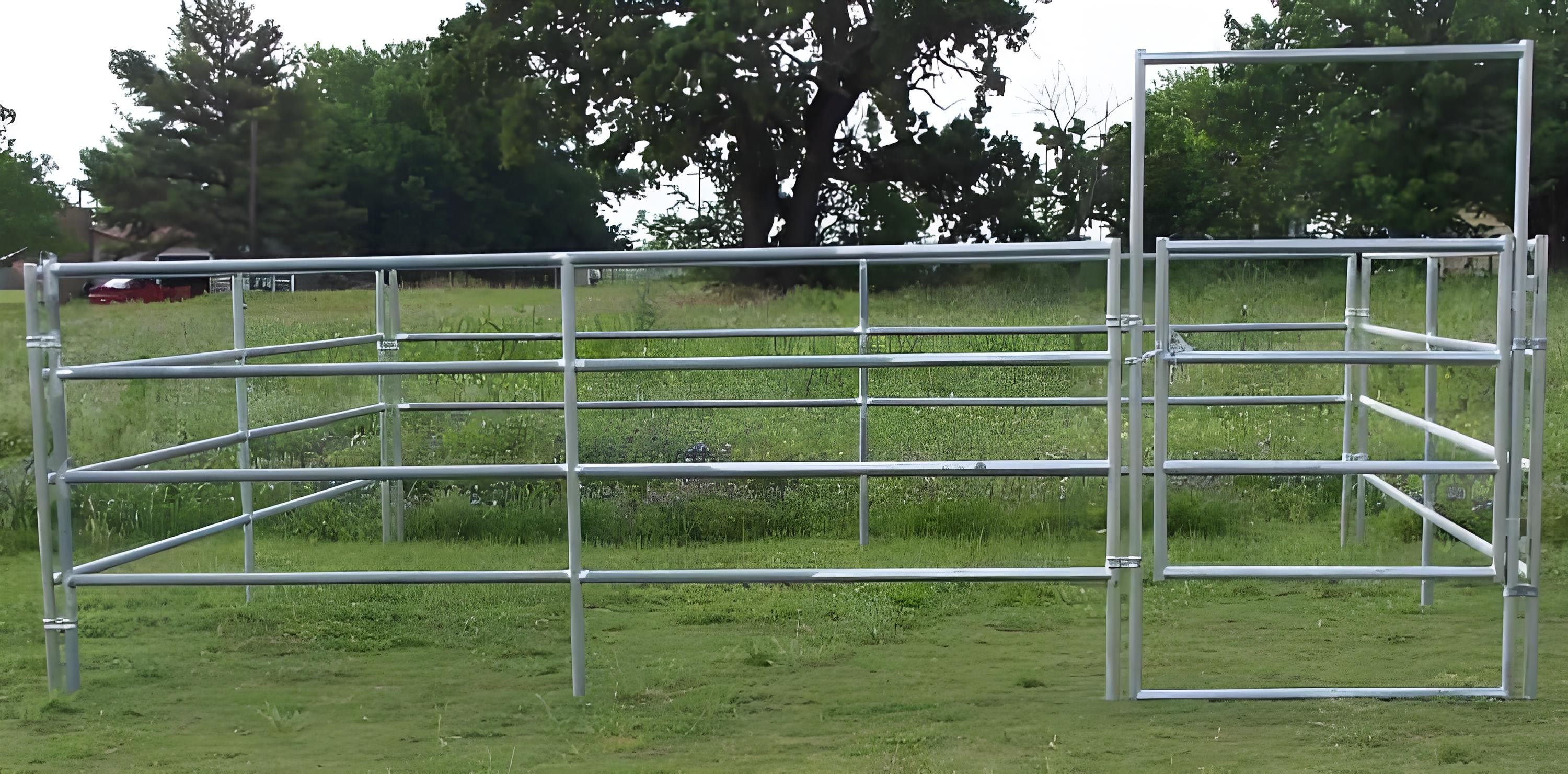

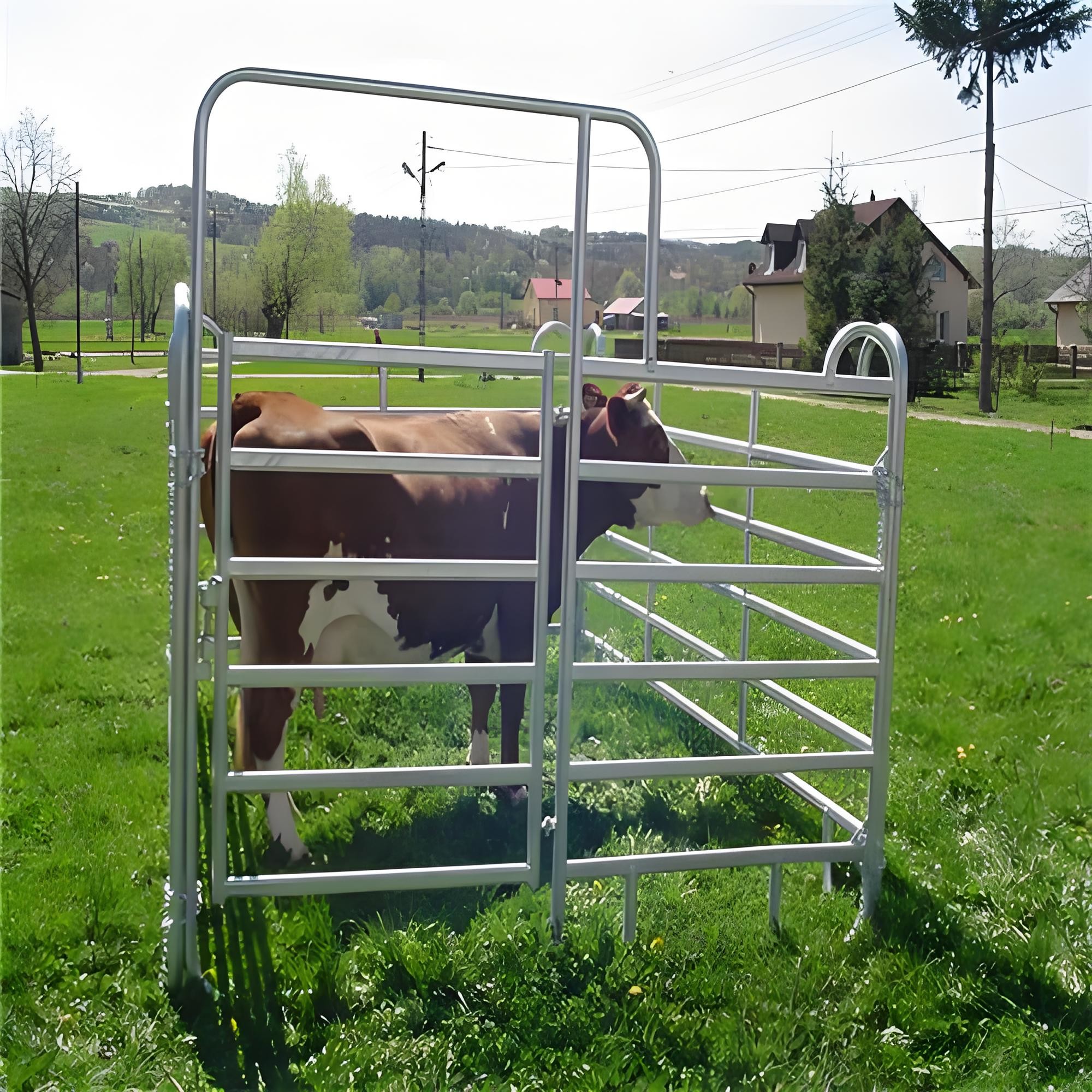

Product Image
Our Services
- 20 hours online service
- Free product customization services
- Free design and drawings
- Product installation guide
- Shipping problem solutions
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we have been providing these products for 20 years.
Q: Is customization available?
A: Yes, we can customize according to your detailed drawings.
Q: Can I get samples?
A: Yes, free samples are available.
Q: What are your payment terms?
A: Typically 30% deposit, with 70% paid before factory departure.
Q: What is your delivery time?
A: Stock products ship within 7 working days after payment. Custom products take 20-30 days after payment.
Quality Control
Packing
