PVC Coated 3D Curved Welded Wire Mesh Fence with 50x50mm Mesh Size and 1.8m Height for Garden Security
جزئیات محصول
| نام محصول | حصار امنیتی مش V | مواد | فولاد کم کربن |
|---|---|---|---|
| محل منبع | هبی، چین | استفاده | حصار باغ |
| خدمات | فیلم نصب | اتمام قاب | روکش پی وی سی |
| رنگ | سفارشی | قطر سیم | 5.0 میلی متر |
| اندازه مش | 50 * 50 میلی متر، 60 * 60 میلی متر | اندازه پنل | 1.8 متر * 2.0 متر |
| بسته | پالت | شکل پست | Peach post. پست هلو. Square post پست مربع |
توضیحات محصول

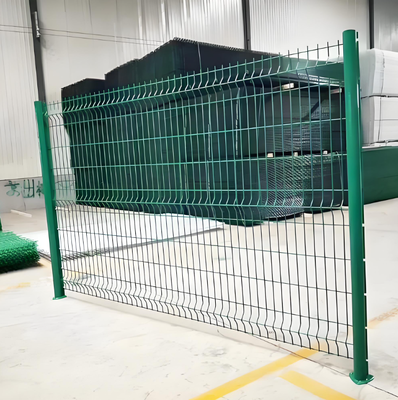

PVC Coated 3D V Bending Curved Garden Welded Wire Mesh Fencing Panel
Product Overview
3D curved bending fence is widely used worldwide due to its attractive appearance, easy installation, and excellent protection performance. Manufactured from high-quality low carbon steel wire through experienced welding, PVC coating, and other production processes, this product is primarily used in farm yards and along roadsides.
Welded Mesh Fence represents an economical fencing solution constructed from welded mesh panels with longitudinal profiles that form a rigid structure. The panels are welded using high-quality low carbon steel wire and surface-treated with electrostatic polyester powder spray coating over galvanized materials.
Specifications
Materials & Process
- Material: High quality low carbon steel wire (Q235, Q195, S235J2)
- Process: Material → Straighten and cutting → Welded → Making folds → Parkerising → Galvanized/Hot-dipped → PVC coated → Packing
- Colors: Green (RAL6005), White (RAL9010), Grey (RAL7004), Yellow (RAL1021), Black (RAL9005), Blue (RAL5005), and custom colors available
Technical Specifications
| Specification | Details |
|---|---|
| Wire Diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| Height x Width | Height: 0.63-2.4m, Width: 2m, 2.5m, 3.0m |
| Opening Size | 50x100mm, 50x150mm, 50x200mm, 75x150mm, etc. |
| PVC Coated Thickness | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50x70x1.2mm, 70x100x1.2mm, post height matches panel height |
| Surface Treatment | Wire mesh panel: galvanized + PVC coated, galvanized + powder spraying Post: galvanized + powder spraying |
Product Features
3D wire mesh fence can be directly connected with the mesh without additional buckles, providing effective anti-theft and anti-disassembly protection. It offers advantages including beautiful appearance, durability, simple structure, and fast, convenient installation.
Applications
- Industrial Facilities: Safety barriers around machinery, storage areas, and loading docks
- Commercial Buildings: Parking garages, staircases, and balconies for safety and aesthetics
- Residential Properties: Balconies, terraces, and garden boundaries providing safety and visual appeal
- Public Spaces: Parks, pedestrian walkways, and bridges ensuring public safety
- Transportation: Highways, railways, and airports for accident prevention and security enhancement

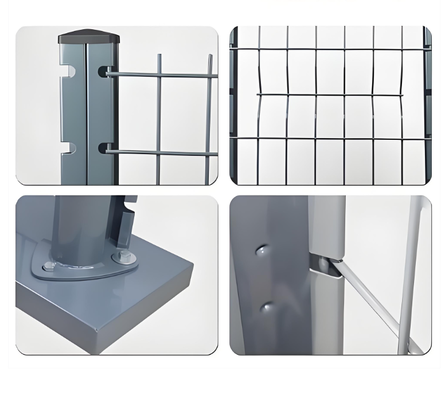

Fence Post Options
| Post Type | Dimensions | Thickness |
|---|---|---|
| Profile Post | 48mm / 60mm | 1.0/1.1/1.2mm |
| Square Post | 40x40, 60x60mm | 1.5/2.0/2.5mm |
| Peach Post | 50x70, 70x100mm | 1.0/1.1/1.2mm |
| Rectangle Post | 40x60, 60x80mm | 1.5/2.0/2.5mm |
| I Post | 70x44, 100x66mm | 1.5/2.0/2.5mm |
Product Advantages
- Fence posts made with concrete pouring for low cost installation
- High strength with good overall stability
- Color plastic coating/spraying layer provides excellent anti-corrosion and decorative effects
- Harmonious perimeter appearance with good outlook
Connection Type & Accessories
Packing & Delivery
- Fence Panel: Plastic film / wooden case + metal/wooden pallet
- Fence Post: Plastic bag + metal/wooden pallet (with rainhat installed)
- Fence Accessories: Plastic bag + carton box (clips & screws)
Accessories come in different types and materials and can be selected as needed. No special attachment required for piping installation - uses propulsion device for easy gripping, fast installation, and reduced costs.
After-Sales Service
- Freight cost optimization assistance regardless of FOB or CIF terms
- Transparent production process with photos provided to customers
- Shipment arrangement and customs clearance support
- Comprehensive installation, maintenance, and repair instructions
Frequently Asked Questions
Can you provide a free sample first?
Yes. Please contact our sales team for details. Samples are available with charge.
What is your delivery time?
Approximately 15 to 25 days after receiving your 30% deposit.
Are you a real factory?
Yes. We have manufactured and exported wire mesh since 2013.
What are the payment terms?
Available by T/T or by Irrevocable L/C at sight.
How can I get a quotation?
Please contact us through our available channels.
